DONGGUAN YAZREID ELECTROMECHANICAL TECHNOLOGY LTD
2 Years
| Ask Lasest Price | |
| Brand Name : | Yazreid |
| Model Number : | YD0040 |
| Price : | USD450/Set |
| Payment Terms : | T/T |
| Supply Ability : | 500 Sets Per Month |
| Delivery Time : | 1-30 days |
Product Description:

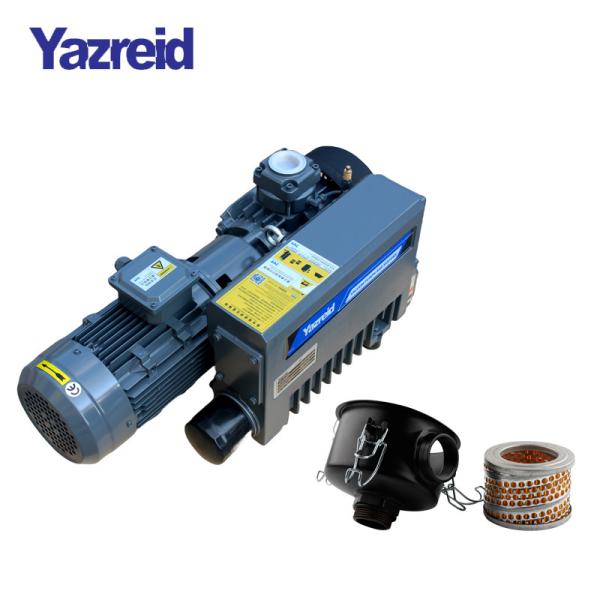

YD series vacuum pump is a basic vacuum obtaining equipment. The main features are single-stage compression, three-piece rotating blade structure, and the use of special vacuum pump oil as the working fluid (lubrication, heat conduction, and cleaning of the working chamber).
YD series vacuum pumps are mainly used in the rough, low and medium vacuum range. It can be used to extract ordinary air or inert gases, as well as small amounts of condensable gases such as water vapor. The operating pressure range of the pump is between atmospheric pressure and the ultimate pressure of the pump.
Technical Parameters:
| Parameter | Unit | YD0040 |
| Rated Flow | 50Hz | 40m³/H |
| Ultimate Pressure | mbar | 0.5 |
| Voltage | 50Hz | 380V |
| Motor Power | kW | 1.1 |
| Current | 50Hz | 6.47A |
| Rotate Speed | min | 1450 |
| Noise | dB(A) | 66 |
| Protection Grade | IP55 | |
| Insulation Grade | F | |
| Cooling type | Air | |
| Caliber | G1 1/4” | |
| Oil tank capacity | L | 1.5 |
| Weight | Kg | 43 |
Application:
Vacuum package machine
Glue dispenser
Chip mounter
SMT machine
Vacuum forming machine
Vacuum defoamation
Vacuum drying
Vacuum precooling machine
Dimensions:
|
|
