DONGGUAN YAZREID ELECTROMECHANICAL TECHNOLOGY LTD
2 Years
| Ask Lasest Price | |
| Brand Name : | Yazreid |
| Model Number : | YD0200 |
| Price : | USD1380/Set |
| Payment Terms : | T/T |
| Supply Ability : | 500 Sets Per Month |
| Delivery Time : | 1-30 days |
Product Description:

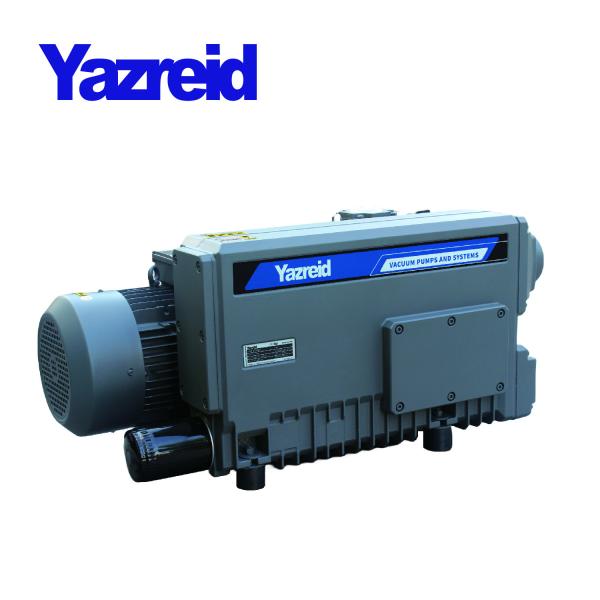

YD series rotary vane vacuum pumps are all single-stage oil-sealed
rotary vane vacuum pumps, which are basic equipment for obtaining
vacuum.
The suction port of the YD type rotary vane vacuum pump is equipped
with a coarse filter with a metal mesh. It can prevent solid
foreign dust particles from being sucked into the pump chamber. The
oil separator is equipped with an exhaust transition device with
efficient oil and gas separation effect. When the pump is stopped,
the suction valve built into the suction port isolates the pump
from the pumped system to prevent vacuum pump oil from returning to
the pumped system. The pump is cooled by air. All YD rotary vane
vacuum pumps are driven by directly connected motors through
elastic couplings.
Technical Parameters:
| Parameter | Unit | YD0200 |
| Rated Flow | 50Hz | 200m³/H |
| Ultimate Pressure | mbar | 0.5 |
| Voltage | 50Hz | 380V |
| Motor Power | kW | 5.5 |
| Current | 50Hz | 11.89A |
| Rotate Speed | min | 1450 |
| Noise | dB(A) | 72 |
| Protection Grade | IP55 | |
| Insulation Grade | F | |
| Cooling type | Air | |
| Caliber | G2” | |
| Oil tank capacity | L | 6 |
| Weight | Kg | 147 |
Application:
Vacuum package machine
Glue dispenser
Chip mounter
SMT machine
Vacuum forming machine
Vacuum defoamation
Vacuum drying
Vacuum precooling machine
Dimensions:
|
|
