| Supply Ability : | 50/ Month |
Our RV-C, RVT and RV-Y mechanical vacuum booster are oil free vacuum pumps that are running together with the backing pumps for all rough and high-vacuum applications where large pumping speeds are needed. Our vacuum boosters operate totally contact-free and with no sealing fluids such as oil or water exiting in the vacuum chamber. MB-Y vacuum boosters are equipped with bypass valve.
| Product Model | 50/60Hz | RV500Y |

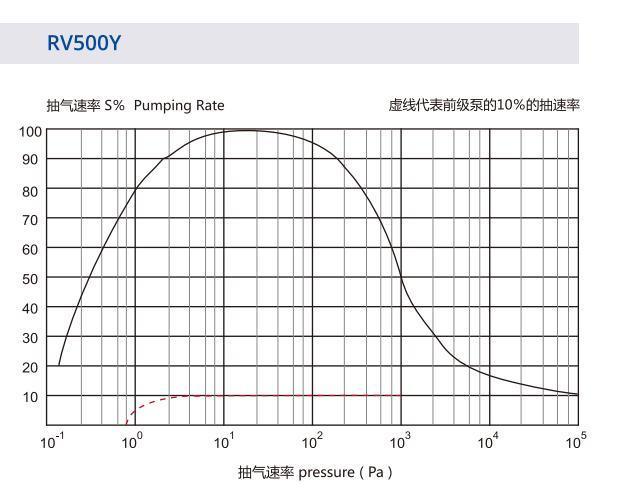

| Pumping Speed | 50Hz | 500m³/H |
| 60Hz | 600m³/H | |
| Ultimate Pressure | mbar | 0.005 |
| Outlet Diam | Pa | 8000 |
| Inlet Diameter | mm | 100 |
| Voltage | 50Hz | 200-240/345-415V |
| 60Hz | 220-275/380-480V | |
| Motor Power | kW | 2.2 |
| Rotate Speed | r/min | 3000 |
| Noise Level | dB | 68 |
| Cooling Mode | Air Cooling | |
| Net Weight | kg | 155 |
|
|
